Cow Shed Building

Prefabricated steel structure cow shed building is a kind of light steel structure building. The frame of the building consists of H section steel columns, H section steel beams and C or Z section purlins. Generally steel structure cattle shed have three types of cattle shed ,open style ,semi-open style and close style.

Product Details

Product description:

Prefabricated steel structure cow shed building is a kind of light steel structure building. The frame of the building consists of H section steel columns, H section steel beams and C or Z section purlins. Generally steel structure cattle shed have three types of cattle shed ,open style ,semi-open style and close style.Open style cattle shed usually has one wall, three side is open,even four side is open.semi-open style has three walls,one side is open. Close style cattle shed has whole wall and roof, some windows on wall. You can choose which type of house you want, or we can design depending on your feeding requirements and local climate.

Item Name Prefabricated steel structure cow shed building
Steel Column Q235B,Q345B/Q355B H shape,Box,Steel Pipe,Hot tolled sheet
Steel Beam Q235B,Q345B/Q355B H shape,Box,Steel Pipe,Hot tolled sheet
Steel Bracing Steel Rod,Steel Pipe,Angle Steel
Steel Purlin C or Z purlins(Thickness1.8mm~3.0mm)
External Wall panels,Roof panels a) Color-coated corrugated steel sheet;
b) Rock Wool Sandwich Panels;
c) EPS Sandwich Panels;
d)Glass wool Sandwich Panels
Skylighting panels FRP T=1.5mm-1.8mm
Ventilator Turbine ventilator on a ridge
Bolt Ordinary ,High strength bolt
Ground bolts Steel Rod M24,M27,M30,M33,M39,M42

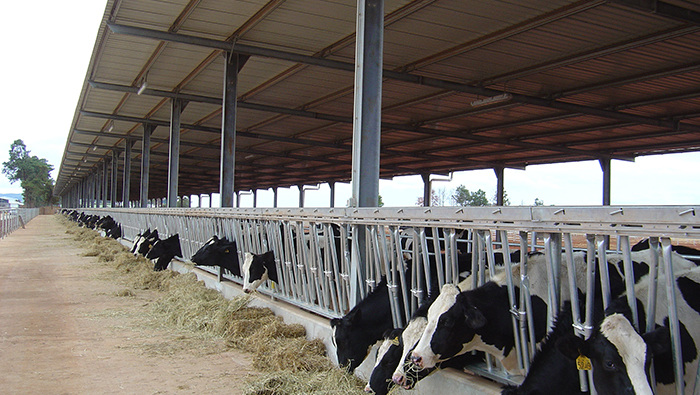

1. Open style cattle shed usually has one wall, three side is open,even four side is open.It just use steel column or steel frame to build as a cattle shed.This kind of cattle shed, the design is very simple, low cost, and good day lighting and ventilation , but heat preservation is poor, so apply to the area with high temperature all year round.

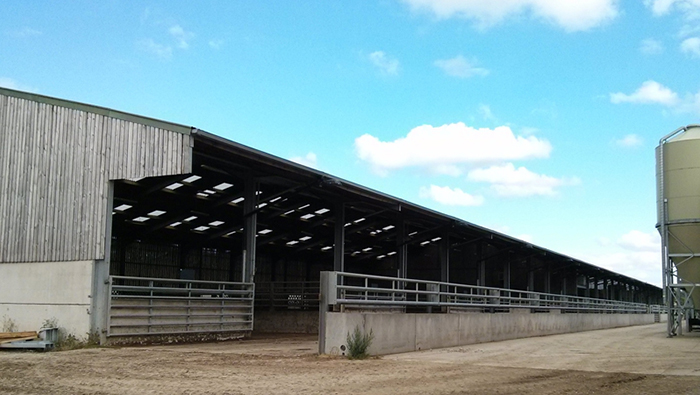

2. Semi-open style cattle shed has three walls,one side is open.This kind of cattle shed is suitable for areas that are not too cold in winter.

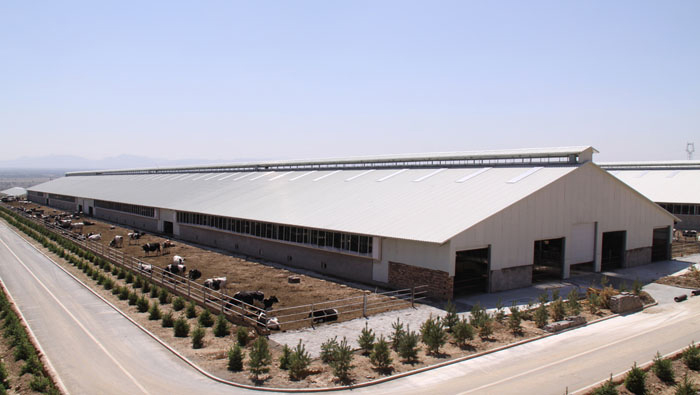

3. Close style cattle shed has whole wall and roof, some windows on wall for lighting, skylights on the roof or Windows on the wall are for ventilation.


FAQ:

Q: Are you trading company or manufacturer ?

A: We are factory. so you will enjoy the best price and competitive price. Our factory covers an area of 60,000 square meters.

Q:Whats the quality assurance you provided and how do you control quality ?

A: Established a procedure to check products at all stages of the manufacturing process - raw materials, in process materials, validated or tested materials, finished goods, etc.

Q:Can you offer designing service?

A: Yes, we have engineers and designers who have more than 15 years of experience join us. We could design full solution drawings as per your requirements.

Q:Do you offer guiding installation on site overseas?

A: Yes, we can provide the service of installation, supervision and training by extra. We can send our professional technical engineer to supervise installation on site overseas.

Please leave your needs,and I will send you the details about your questions!

Such as these questions:

1. Location (where will be built? ) _____country, area

2. Size: Length*width*height _____mm*_____mm*_____mm

3. Wind load (max. Wind speed) _____kn/m2, _____km/h, _____m/s

4. Snow load (max. Snow height)_____kn/m2, _____mm

5. Anti-earthquake _____level

6. Brick wall needed or not If yes, 1.2m high or 1.5m high

Style : 1.open style 2.semi-open style 3. close style.

8. Door quantity & size _____units, _____(width)mm*_____(height)mm
